220v thermal exchage heater for dishwasher

Share to:
    Unit Price: USD 22 / Piece/Pieces
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB
    Min. Order: 1 Piece/Pieces
    Delivery Time: 30 Days

Basic Info

Model No.: XHD-Y-250G035110/220V

Certification: RoHS, CCC, Other

Type: Other

Material: Other

Form: Other

Shape: Tubular

Substrate: Stainless Steel

Application: Home Appliance Such As Water Boiler And Coffee Machine

Length: 110mm

Heating Method: Flow Through Heating, Circuit Printed On The Tube Surface

Diameter: 35mm

Rated Power/voltage: 2500w/220v

Additional Info

Packaging: Carton or wooden case packing

Productivity: 20000 pieces for one day

Brand: Andetoong

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 7 million for one year

Certificate: ISO9001/ROHS/FDA

HS Code: 8516800000

Port: Qingdao,Tianjing,Shanghai

Product Description

220v thermal exchage heater for dishwasher

Super Performance of Thick Film Heating Tube

Power Density is up to 60W/cm2.

Temperature ramp-up between 80℃~150℃/S.

Electric Heating Circuit printed on tube surface`s insulation layers, and covered by another insulation layer. Water and Electric is insulated totally.

Thermal transfer efficiency ≥98%.

Long work life( > 10000H ) .

Environment and Health friendly: Non-electromagnetic radiation and heavy metal ions.

Simple Structure & Compact Profile brings more possibility for new products R&D. It can successfully replace Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.


Advantage Of Thick Film Heating Tube

What is stainless steel Thick Film Heating Element?

Thick film Heating Element is covered with three or four layers of insulating medium, silver electrode layer, resistance layer and glaze sealing protective layer respectively on stainless steel substrates by screen printing and sintering technology.




Origin of thick film heating technology

The thick film heating technology is new type of heating technology which is developed mainly by DuPont and Heraeus in 1990s. They invent the electronic paste which can be used on the stainless steel substrate firstly.Thick film constitution is using the technology of silk-screen printing and high temperature sintering, the thick film Heating Tube was covered in order by sinter dielectric layer, resistance layer, silver conductor layer and isolation glazes protective layer.

Detail information of 220v Instant Heating Element

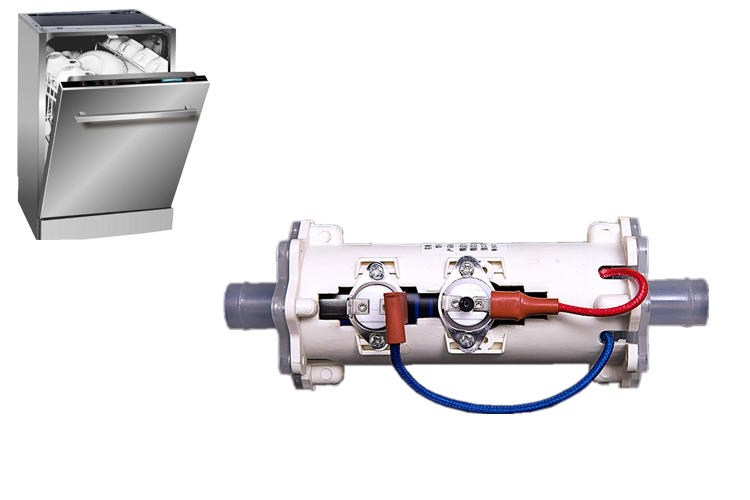

heating element

With its simple tubular structure, Electric Heating Tube can heat water flow inside the tube. Electric Circuit printed on tube surface, to heat the water flow inside.

The parameters of 220v Instant Heater For Dishwasher


Product Model
XHD-Y-250G035110/220V
Product application
Dishwasher
Tube Size
035mm*110mm
Substrate
SUS430/444
Standard Power/Voltage
2500W (+ 5% ~ -10%)/220V
Lead time
25 Days
Optional power
≤3500W
Customized period
40 days
Optional Voltage
220V/230V
MOQ
2000 pieces
Electric strength
≥1250V/5mA/60s
Wiring manner
High Temperature Tin Welding
Insulation resistance
50MΩ
Product certification
CQC.ROHS.Wading health approval documents,FDA,CMA

dishwasher heater




Product use precautions of diswasher heating element

1, The product temperature rising rate is greater than 80 ℃~150℃/S, so, please ensure that the tube is filled with water before use.
2, The pipe must be installed vertically when heating liquid, the direction of liquid flow is from the bottom up. To avoid local dry burning, please add water at first, and then connect to power.
3, Based on different powers, the user should ensure the minimum flow, while ensuring smooth water access to the pipe, so as to avoid vaporization and dry burning.
4, Pay attention to the surface heat dissipation; and due to a big power density, please also pay attention to the rate of heat exchange.


Brief introduction of our Company

Since its establishment in 2012, Jieda has been focusing on R&D and mass production of thick film heating pipes. The stainless steel thick film heating pipes produced by Jieda are widely acclaimed for its high thermal efficiency, stable performance and safety and durability. Jieda GIDAPE® ANDETONG® series stainless steel thick-film heating tube has four invention patents, dozens of utility model patents, we are also the first domestic company who produces stainless steel thick film products with CQC certification, wading health approval documents, ROHS certification.

picture of Jieda



Advantage Of Jieda Thick Film


Looking for ideal Home Usage Dishwasher Heater Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 220v Thermal Exchage Heater are quality guaranteed. We are China Origin Factory of Thermal Exchaging Heater. If you have any question, please feel free to contact us.
