5kw water heating tube

Share to:
    Unit Price: USD 25 / Piece/Pieces
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR
    Min. Order: 1 Piece/Pieces
    Delivery Time: 25 Days

Basic Info

Model No.: XHD-Y-500G050150/220V

Certification: RoHS, UL, CCC, ISO9001, CE

Type: Other

Material: Other, Stainless Steel

Form: Other

Shape: Other

Other Name: Tubular Heating Exhanger

Product Name: Electric Tubular Heating Tube

Packing: Case And Wooden Package

Usage: Water Heater

Feature: Long Life Span /quick Response/ High Power Desity

Sample Time: Depends On The Product Customer Need

Voltage: 220V

Power: 5000w/220v

Size: 150mm

Additional Info

Packaging: carton box

Productivity: 300000pcs/month

Brand: ANDETONG/GIDAPE

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 300000pcs/month

Certificate: FDA,RoHS,CE

HS Code: 8516800000

Port: Shanghai,Tianjin,Qingdao

Product Description

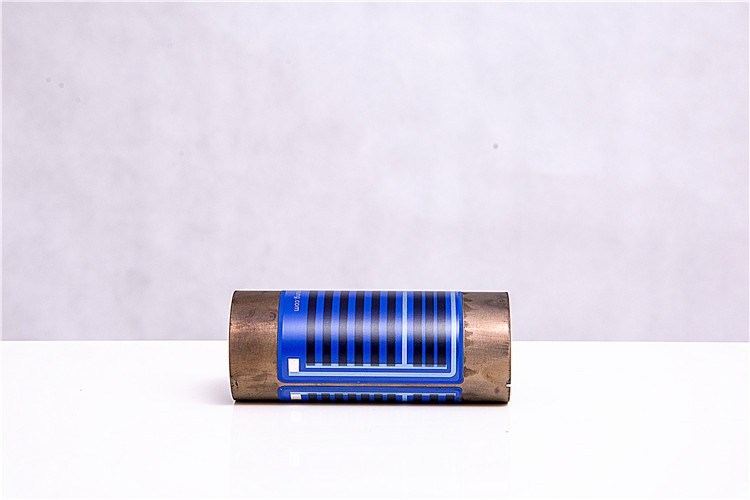

5kw water Heating Tube

GIDAPE® ANDETONG® series 5KW Thick Film Heating Tubes has the following characteristics:
1, Safe and durable high strength: stainless steel substrate, Multi-layer microcrystalline vitreous insulation.
2, Fast heating: heating circuit has temperature rise over 80~150 degrees per second.
3, High utilization rate of heat: directly rapid-heat stainless steel tube, a big heat exchange area, fast replacement, efficiency up to above 98%.
4, Green and environmental protection: pure resistive load, no electromagnetic radiation, good for human body and mind.
5, The Thick Film Heating Tube can heat the water when it flow through the tube. Special tubular heating structure not only provides a great convenience for special application areas, but also provides an irreplaceable condition for the development of new products.

6, Customized services: we tailor-make electric heat products and provide application solutions for enterprises.

Thick Film Heating Tube



The product parameters of 5kw thermal exchage heater


Tube Size
050mm*150mm Substrate
SUS430/444
Standard Power/Voltage
5000W (+ 5% ~ -10%)/220V
Lead time 30 Days
Optional power
≤5000W
Customized period 40 days
Optional Voltage 220V/230V
MOQ
1000 pieces
Electric strength
≥1500V/5mA/60s
Wiring manner
High Temperature Tin Welding
Insulation resistance
≥50MΩ
Product certification
CQC.ROHS.Wading health approval documents

electric heating tube



The application of Thick Film Heating Element

The series of Jieda GIDAPE® ANDETONG® stainless steel thick film heating tube have been specially designed for fluid heating, and currently 5kw electric heating tubes have been successfully applied to water and fluid heating , fast heat water heater, pipeline machine,industrial circulate-heating, industrial boilor, solar assisted heating machine commerail vending machine etc.

Industry Heatercommercial vending machine



5kw Electronic Heating Parts use precautions

1, The product temperature rising rate is greater than 80 ℃~150/S, so, please ensure that the tube is filled with water before use.
2, The pipe must be installed vertically when heating liquid, the direction of liquid flow is from the bottom up. To avoid local dry burning, please add water at first, and then connect to power.
3, Based on different powers, the user should ensure the minimum flow, while ensuring smooth water access to the pipe, so as to avoid vaporization and dry burning.

4, Pay attention to the surface heat dissipation; and due to a big power density, please also pay attention to the rate of heat exchange.


Xinxiang jieda company brief introduction

Since its establishment in 2012, Jieda has been focusing on R&D and mass production of thick film heater. The stainless steel thick film heating tube produced by Jieda are widely acclaimed for its high thermal efficiency, stable performance and safety and durability.

Picture Of Jieda


Jieda has dozens of invention and utility model patents. Based on the precision quality control and management, Jieda has obtained the ISO-9001 certification.

Gida® and Gidape® series thick film heating elements were certificated by CQC, ROHS, FDA and CMA.



Looking for ideal Thick Film Heating Parts Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Electrial Water Heating are quality guaranteed. We are China Origin Factory of Customize Heating Parts. If you have any question, please feel free to contact us.

Product Categories : Thick Film Heating Tube > 5KW Thick Film Heating Tubes
