1500W Bearing Pressure Thick Film Heater 120V

Share to:
    Unit Price: USD 44 / Piece/Pieces
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR
    Min. Order: 1 Piece/Pieces
    Delivery Time: 25 Days

Basic Info

Model No.: JDHJ30 1500W/120V G1/8

Certification: RoHS, UL, CCC, ISO9001, CE

Type: Other

Material: Other, Stainless Steel+PE+silicone

Form: Other

Shape: Other

Other Name: Tubular Heating Exhanger

Product Name: Electric Tubular Heating Element For Electric Water Heater

Packing: Case And Wooden Package

Usage: Water Heater

Feature: Long Life Span /quick Response/ High Power Desity

Sample Time: Depends On The Product Customer Need

Power: 1500w/120v

Size: 159mm*78mm*46mm

Voltage: 120V

Additional Info

Packaging: carton box

Productivity: 300000pcs/month

Brand: ANDETONG/GIDAPE

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 300000pcs/month

Certificate: FDA,RoHS,CE

HS Code: 8516800000

Port: Shanghai,Tianjin,Qingdao

Product Description


Small size electric heating parts

On the basis of thick film heater, our company developed small Heating Element in order to meet the customers`needs of variety applications, this type of Electric Heating Element can withstand 0.8 MPa pressure, it is a best choice for coffee machine, instant water heater, industrial water heating equipment and other products.

Fast Heating Heater

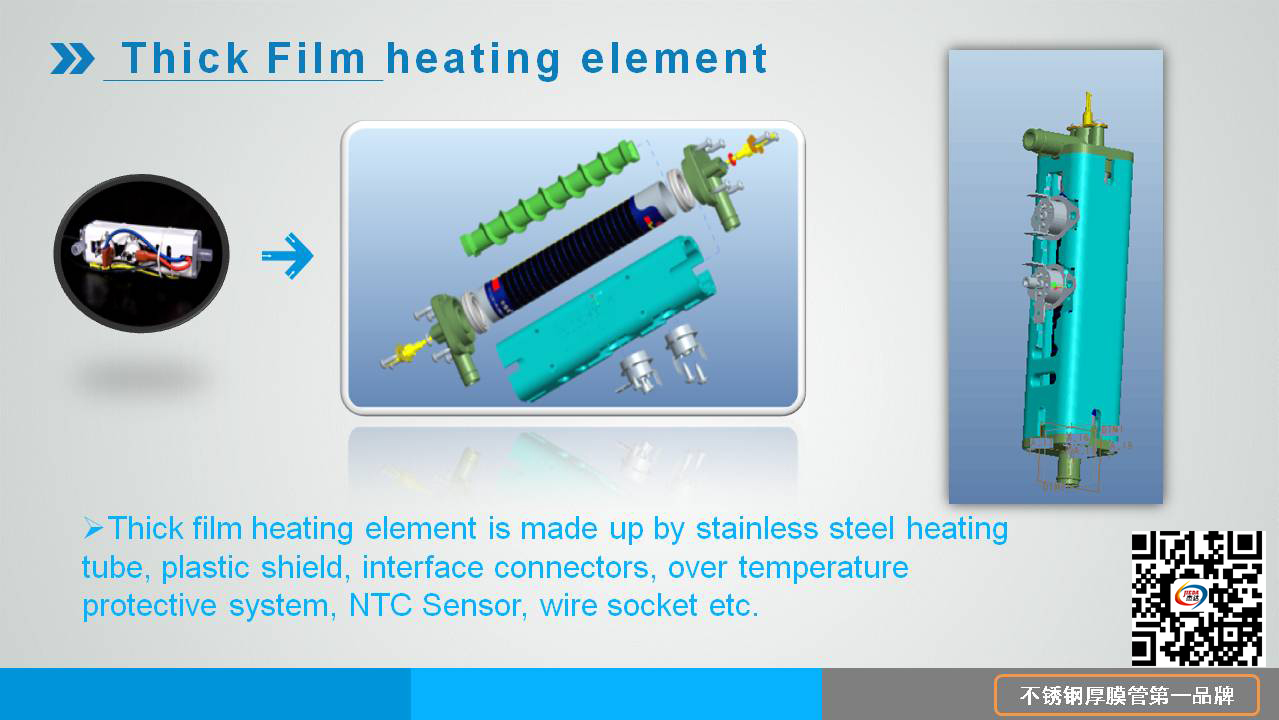

Jieda Thick Film Heating Element consist of stainless steel Thick Film Heating Tube, protective PP outer shell, water inlet and outlet joints, anti-dry heating thermostat, silica gel spiral guidance column, wires and so on. Easy to apply&install, as well as connect to waterways.

The tubulor heater structure allows rapid water flow and instant heating carrying.




the structure of heating element


diagram of the heater

Advantages of Instant Heating Element
Under the same conditions, Jieda products have many application advantages, such as large heating area, high heat conduction efficiency (≥98%), rapid thermal response (≥80~150 ℃/S), long working life (≥10000 hours) etc.


Advantage of thick film heating tube

The parameters of Electric Heating Parts

Product Model JDHJ30 1500W/120V G1/8 Product application Water dispenser/Water purifier
Product Size 159mm*78mm*46mm Fixing manner Fix from sides/Fix from end
Tube Size 030mm*110mm Water inlet&outlet connector size G1/8
Standard Power/Voltage 1500W(+ 5% ~ -10%)/220V Lead time 25 Days
Optional power ≤2200W MOQ 1000 pieces
Electric strength ≥1250V/5mA/60s Main Components Heating Tube/connector/thermostat, Temp.sensor/sprial column
Bearing Pressure ≤0.2Mpa Product certification CQC,ROHS,Wading health approval documents

Electric Heating Body is our standard product, which is widely used for coffee machine,steam generator, medical care machine and industry equipment. And we can customize the product with different power and voltage according to customer'need.

thick film heating element for coffee maker

Thick film Electric Heater use precautions

1, The product temperature rising rate is greater than 80 ℃~150℃/S, so, please ensure that the tube is filled with water before use.
2, The pipe must be installed vertically when heating liquid, the direction of liquid flow is from the bottom up. To avoid local dry burning, please add water at first, and then connect to power.
3, Based on different powers, the user should ensure the minimum flow, while ensuring smooth water access to the pipe, so as to avoid vaporization and dry burning.
4, Pay attention to the surface heat dissipation; and due to a big power density, please also pay attention to the rate of heat exchange.


usage of thick film heating element

Brief introduction of our Company
Since its establishment in 2012, Jieda has been focusing on R&D and mass production of thick film heating pipes. The stainless steel thick film heating pipes produced by Jieda are widely acclaimed for its high thermal efficiency, stable performance and safety and durability. Jieda GIDAPE® ANDETONG® series stainless steel thick-film heating tube has four invention patents, dozens of utility model patents, we are also the first domestic company who produces stainless steel thick film products with CQC certification, wading health approval documents, ROHS certification.
