Bearing pressure heating spare parts for coffee machine

Share to:
    Unit Price: USD 44 / Piece/Pieces
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB
    Min. Order: 1 Piece/Pieces
    Delivery Time: 3 Days

Basic Info

Model No.: JDHJ20 1600W/120V G1/8

Certification: RoHS, UL, CB, CCC, ISO9001, CE, Other

Type: Other

Material: Other

Form: Other

Shape: Tubular

Additional Info

Packaging: Carton Box

Productivity: 300000pcs/month

Brand: ANDETONG/GIDAPE

Transportation: Ocean,Land,Air

Place of Origin: Xinxiang,China

Supply Ability: 300000pcs/month

Certificate: FDA RoHS CE

HS Code: 8516800000

Port: Shanghai,Tianjin,Qingdao

Product Description

Product Introduction
Htb1dg4mjcuybunksmry763a3pxah

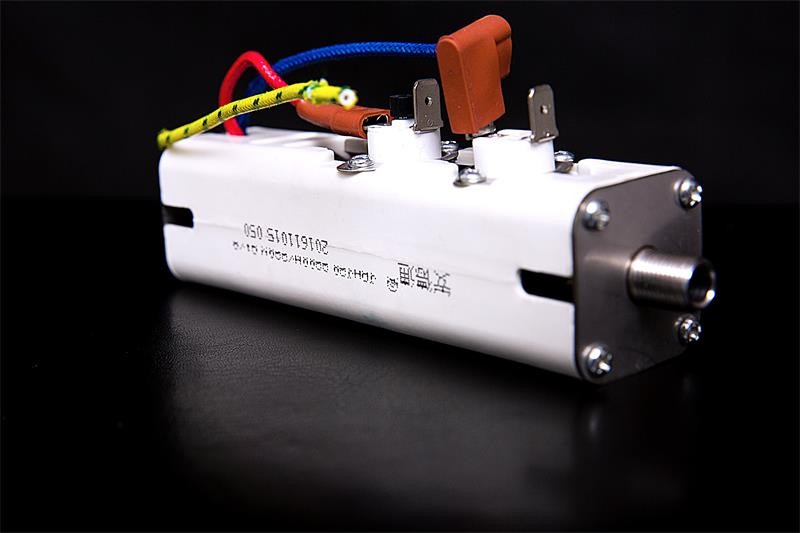

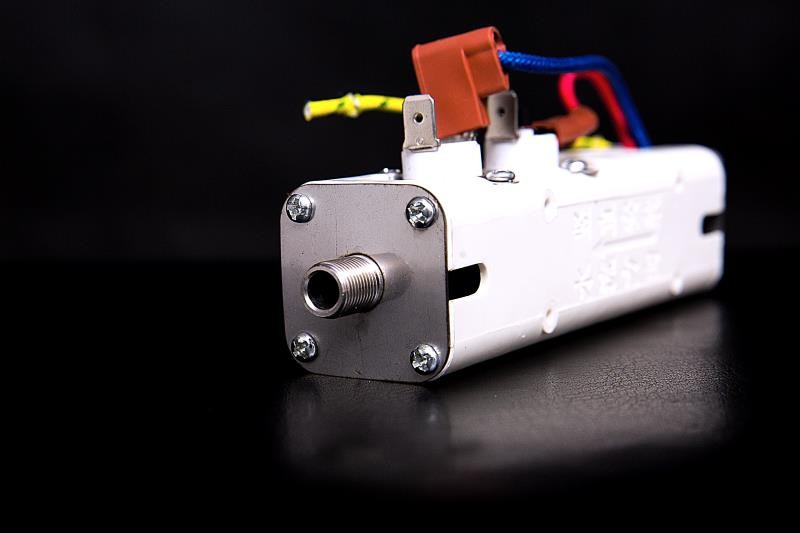

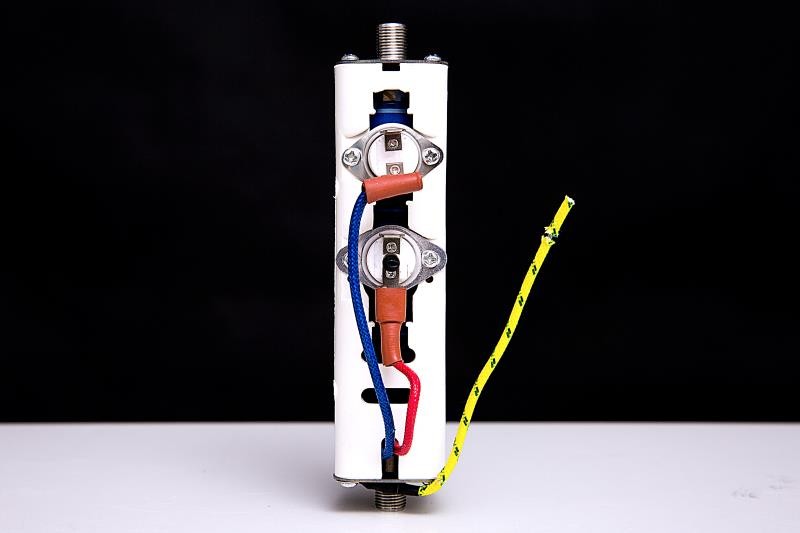

Bearing pressure Heating Element for coffee maker

JIEDA Thick Film Heating Element consists of stainless steel thick-film heating pipe, outer protective shell, water inlet and outlet joints, anti-dry thermostat, power cord, etc. It can be fixed on sides, with G1/8 thread diameter connecting orifice.

This type of Electric Heating Element is an intelligent temperature control thick film heating body. It can work with the PCB circuit control system, so that the pre-set temperature and hot water quantity can be decided.


Product detail

1

Core component of Bearing pressure heating element for coffee maker
Stainless steel thick-film heating tubes of ANDETONG® series manufactured by company JIEDA are tubular structures, that allows rapid water flow and instant heat carrying. Under the same conditions, ANDETONG® series has many application advantages, such as large heating area, high heat conduction efficiency (≥98%), rapid thermal response (≥80 ℃~150℃/S), long working life (≥10000 hours) etc..

23

Our Advantages
2, Fast heating: heating circuit has temperature rise over 80~150 degrees per second.
3, High utilization rate of heat: directly rapid-heat stainless steel tube, a big heat exchange area, fast replacement, efficiency up to above 98%.
4, Green and environmental protection: pure resistive load, no electromagnetic radiation, good for human body and mind.
5, Special tubular heating structure not only provides a great convenience for special application areas, but also provides an irreplaceable condition for the development of new products.
6, Customized services: we tailor-make electric heat products and provide application solutions for enterprises.

1, Safe and durable high strength: stainless steel substrate, Multi-layer microcrystalline vitreous insulation.



4

Product Parameters


Product model

JDHJ20 1500W/120V G1/8

Water inlet/outlet connection

G1/8

Product name

20 heating element

Optional connection

None

Standing power

1500W/120V

Fixing manner

Side fix

Optional power

≤1500W/120V

Technical parameters

Rated power:1500W(+5%~-10%)

Rated voltage:120V

Withstand voltage:≥1250V/5mA.60s

Insulation resistance:50MΩ

Withstand pressure:0.8MPa

Customize Yes? or No?

Yes

Product feature

PTC

Customize period

40 days

Extend accessories information

20 temperature control mudule

Customize range

≤1500W/120V

Application

Liquid heating

Heating pipe dimensions

Φ20*120mm

MOQ

1000

Overall dimensions

168mm*48mm*33mm

Certification

CQC,ROHS

Use Precaution

2, The pipe must be installed vertically when heating liquid, the direction of liquid flow is from the bottom up. To avoid local dry burning, please add water at first, and then connect to power.
3, Based on different powers, the user should ensure the minimum flow, while ensuring smooth water access to the pipe, so as to avoid vaporization and dry burning.
4, Pay attention to the surface heat dissipation; and due to a big power density, please also pay attention to the rate of heat exchange.


1, The product temperature rising rate is greater than 80 ℃~150℃/S, so, please ensure that the tube is filled with water before use.

Why Choose Us
9

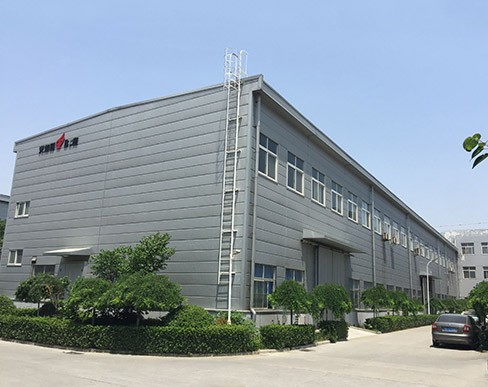

About us

Equipment & technology

Jieda stainless steel Thick Film Heating Tube is developed from Thick Film Heating Plate. Since the establishment of JIEDA company in 2012,

we have always focused on the research&development&production of stainless steel tube thick film heating body.





Looking for ideal Instantaneous Heating Tube Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Flowing Water Heaters are quality guaranteed. We are China Origin Factory of Customized Heating Lap. If you have any question, please feel free to contact us.
