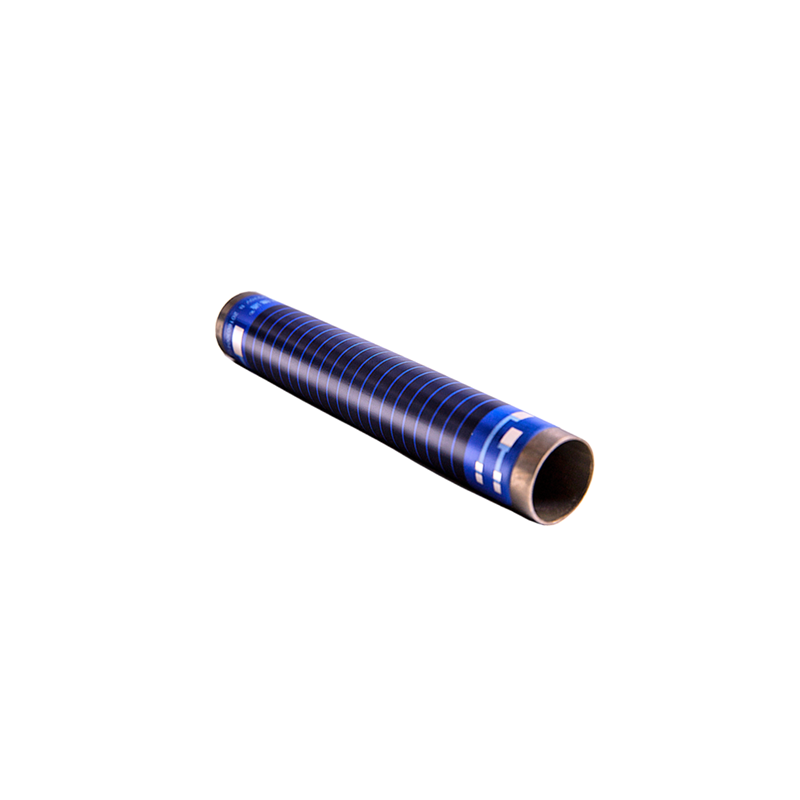

2200W hot water purifier instant heating element

Share to:
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR
    Min. Order: 1 Piece/Pieces
    Delivery Time: 25 Days

Basic Info

Model No.: XHD-Y-140G020120/110V

Certification: RoHS, UL, CCC, ISO9001, CE

Type: Other

Material: Other, Stainless Steel+PE+silicone

Form: Other

Shape: Other

Other Name: Tubular Heating Exhanger

Product Name: Electric Tubular Heating Element For Electric Water Heater

Packing: Case And Wooden Package

Usage: Water Heater

Feature: Long Life Span /quick Response/ High Power Desity

Sample Time: Depends On The Product Customer Need

Size: 20mm*120mm

Power: 2200w/220v

Voltage: 220V

Additional Info

Packaging: carton box

Productivity: 600000pcs/month


Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 600000pcs/month

Certificate: FDA,RoHS,CE

HS Code: 8516800000

Port: Shanghai,Tianjin,Qingdao

Product Description

2200W hot water purifier Instant Heating Element

Under this industry background, JIEEDA introduce most advanced electric heating technology from Europe. We focus on latest technique of thick film heating and devoted to R&D and manufacturing of thick film heating products, through its unremitting efforts, JIEEDA has became a domestic leader in the field of thick film Tubular Heater, a comprehensive application solution provider, and a participant of electric heating technological innovation.

800w Heating Element

Application of Electric Heating Tube to the industrial equipment, small variety of home appliances can be seen everywhere. The core of electric heating products is electric component, which determines the life and performance of the products. therefore, more enterprises demand higher technological content from quality and working performance of the elements. however, the conventional Electric Heating Element has been unable to meet the needs of majority of enterprises in aspects of volume, life, thermal efficiency, heating speed, power density, mechanical strength, energy saving and environmental protection.

Origin of thick film heating technology

The thick film heating technology is new type of heating technology which is developed mainly by DuPont and Heraeus in 1990s. They invent the electronic paste which can be used on the stainless steel substrate firstly.

Thick film constitution

Using the technology of silk-screen printing and high temperature sintering, the Thick Film Heating Tube was covered in order by sinter dielectric layer, resistance layer, silver conductor layer and isolation glazes protective layer.

Finished product form of Smart Water Heater

A instant electric thick film Heating Tube was covered with a dense layer of microcrystalline glass film on the surface, which is not easy to be abscised and scratched.

Advantages of thick film heating tube

The instant heating heater of the Jieda GIDAPE® ANDETONG® series have the advantages of large heating area, high heat conduction efficiency (≥98%), fast thermal response (80 ℃~150℃/S), long working life (≥10000 Hour) and other significant advantages.

Advantage of thick film heating tube

Detail information of 20mm 1200w electric instant heating tube

2200 instant thick film heating tube

With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside.

The parameters of electric Instant Heater

Product Model XHD-Y-220G020120/220V Product application Water dispenser Electric faucet Water purifier Water boilor
Tube Size 020mm*120mm Substrate SUS430/444
Standard Power/Voltage 2200W (+ 5% ~ -10%)/220V Lead time 25Days
Optional power ≤1700W Customized period 40 days

Optional Voltage


MOQ 1000 pieces
Electric strength ≥1250V/5mA/60s Wiring manner High Temperature Tin Welding
Insulation resistance 50MΩ Product certification CQC.ROHS.Wading health approval documents

feature of thick film heating tube

Because of the small size and low power, our 20mm 1200w electric instant heating tube is widely used for Hot Water Dispenser, sous vide and medical care machine.

Application Of Thick Film Heater

Product use precautions of 20mm 1200w electric instant heating tube

1, The product temperature rising rate is greater than 80 ℃~150℃/S, so, please ensure that the tube is filled with water before use.
2, The pipe must be installed vertically when heating liquid, the direction of liquid flow is from the bottom up. To avoid local dry burning, please add water at first, and then connect to power.
3, Based on different powers, the user should ensure the minimum flow, while ensuring smooth water access to the pipe, so as to avoid vaporization and dry burning.
4, Pay attention to the surface heat dissipation; and due to a big power density, please also pay attention to the rate of heat exchange.

Brief introduction of our Company

Since its establishment in 2012, Jieda has been focusing on R&D and mass production of thick film heating pipes. The stainless steel thick film heating pipes produced by Jieda are widely acclaimed for its high thermal efficiency, stable performance and safety and durability. Jieda GIDAPE® ANDETONG® series stainless steel thick-film heating tube has four invention patents, dozens of utility model patents, we are also the first domestic company who produces stainless steel thick film products with CQC certification, wading health approval documents, ROHS certification.
